EASY, SIMPLE, BOTTOM BRACKET ADAPTER.
Finally you can electrify those rad bikes with press-fit bottom brackets!
No longer are the bike’s bottom bracket size dictating if it can or can’t be converted.

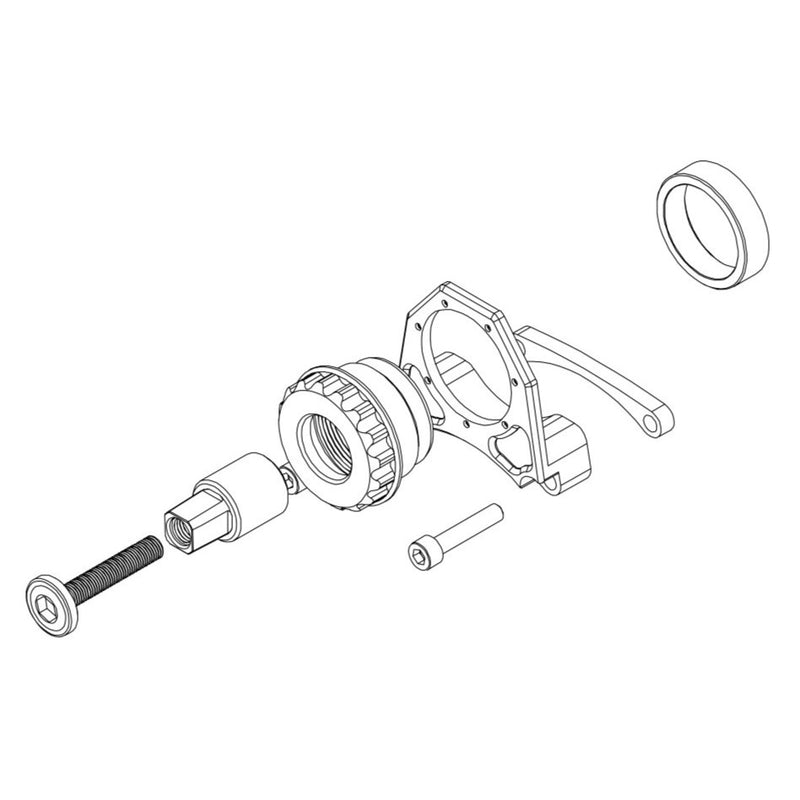

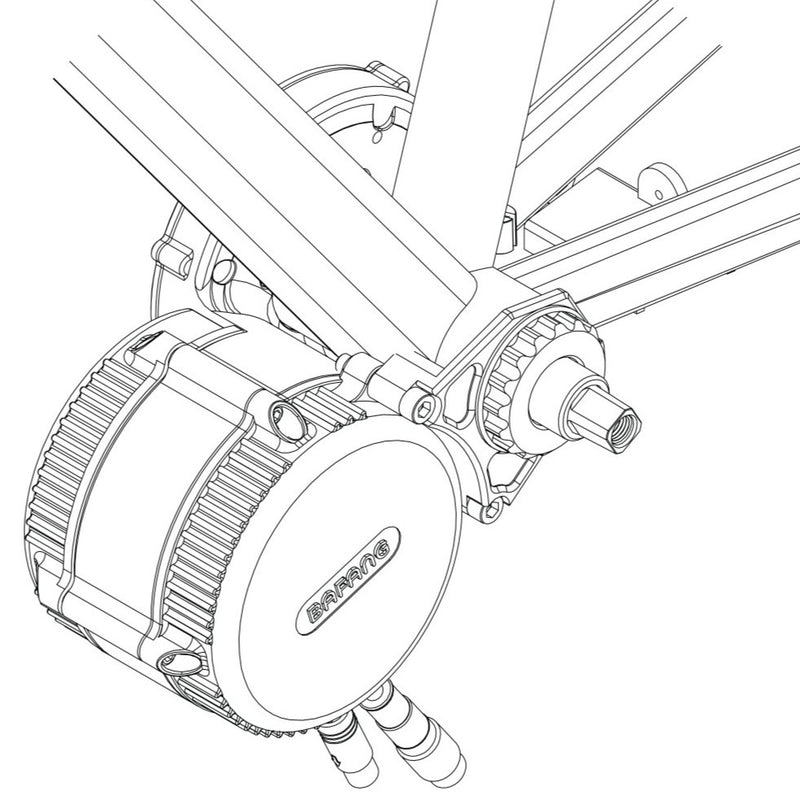

Lekkie designed the BB86/92 Adapter set to allow a 68mm Bafang motor to fit a BB86/BB92 bottom bracket (with an inner diameter 41mm) frame without having to modify or disassemble your motor.
This adapter will only work with frame with a 41mm inner diameter BB. It is designed to work with frames with a BB frame tube outer diameter of less than 47mm ideally (48mm will work but motor will space out 2mm).
Carbon frames often have a thick layer of carbon and the motor can’t fit.
From our experience we have found frames with ISG chain guide mounts may require some modification as these mounts can interfere with motor clearance.
Check the Adapter User Guide to see if it suits your needs:
Feel free to contact us before purchasing this if you are unsure.
|Bafang BBS01 / BBS02 / BBSHD
|6061 T6 Aluminium, CNC machined, hardened steel axle extension
|Anodized Black with Red plate
41mm inner diameter (BB86/92),
no larger than 48mm outer, 86 or 92mm wide
|1 Released 2020
