Display Unit: DP-C14 (850C)
The Bafang DP-C14 is a color display which can be used to control your Bafang mid-drive electric bike.

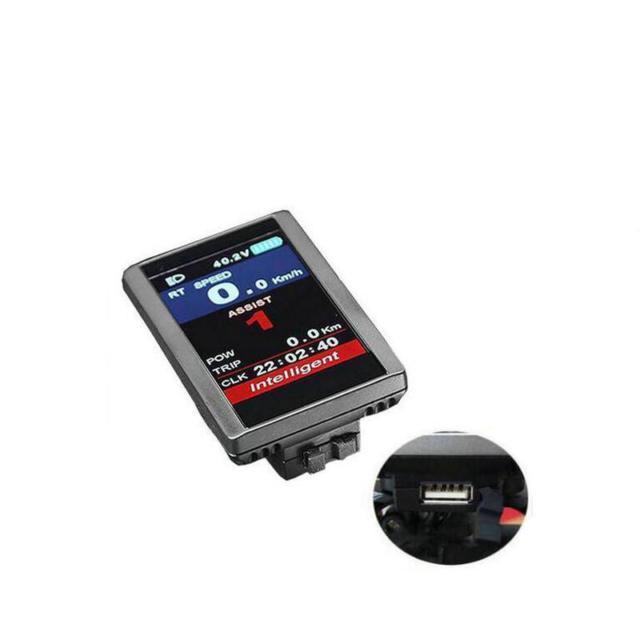

With a high-contrast 3.2inch IPS colorful matrix screen and ergonomic external button design, this device is easy to operate.
The DP-C14 (850C) unit displays the following:
battery voltage indicator
current power consumption

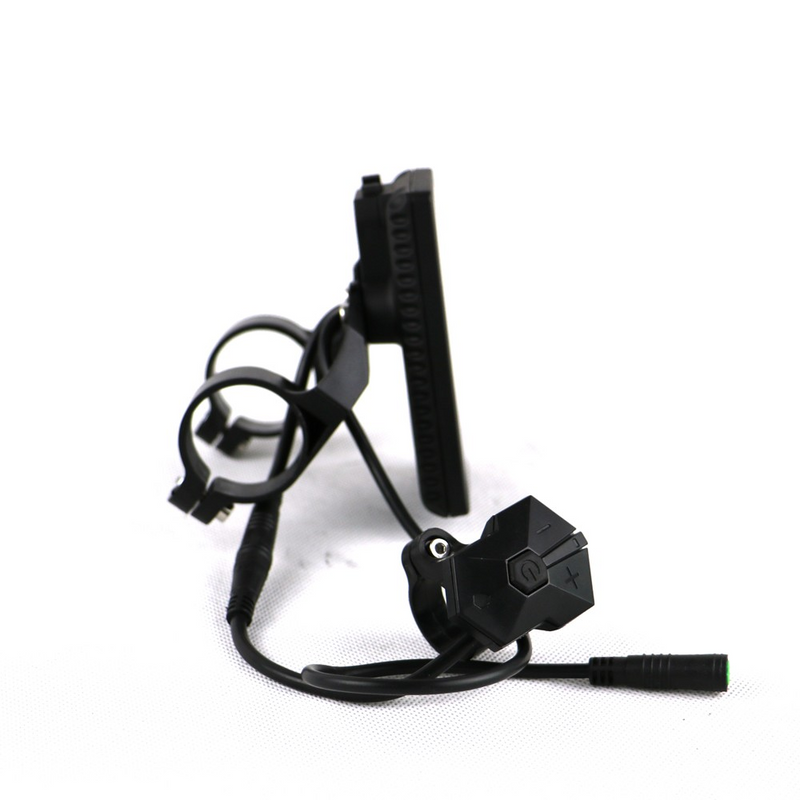

The display connects to the green HIGO cable on your controller and a 3-button remote control.
Improved battery life without connected battery
Compatible with Bafang BBS01, BBS02 & BBSHD motors
The voltage reading goes up to 70V
This unit is called both DP-C14 and 850C, which is the original name.
Background settings in black or white with 2 different designs
- Model: 850C colorful display
- Nominal voltage: 24V/36V/48V/60V
- Handlebar Fitments: Ø 22.2/25.4/31.8 mm
- Cable Length: 50cm including connector
- Switch Cable Length: 22cm
- Connector: 5 Pin Base connector
- Application: Bafang BBS01, BBS02 & BBSHD mid-drive motors
- Water Protection: IP65
- Certifications: CE/EN15194 Rohs
- USB Charging port: 5V/500mA
| USER MANUAL
Click here for: DP-C14 (850C) USER Manual
