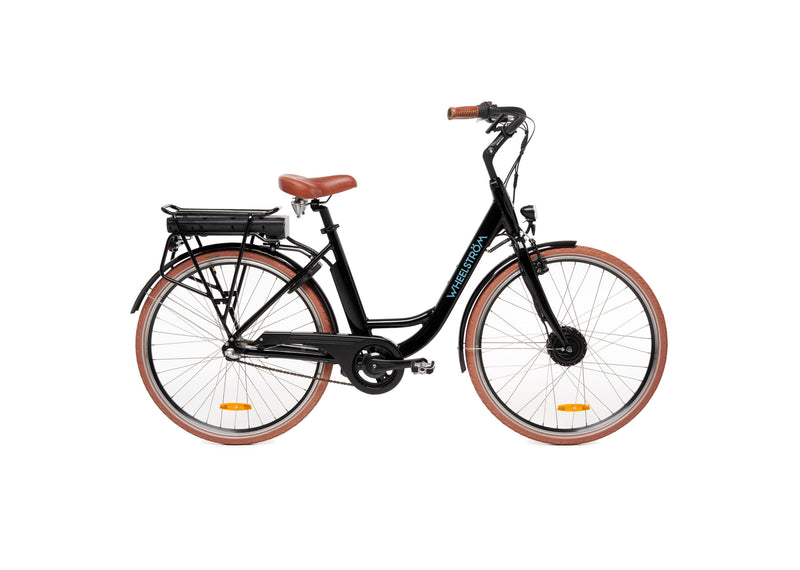

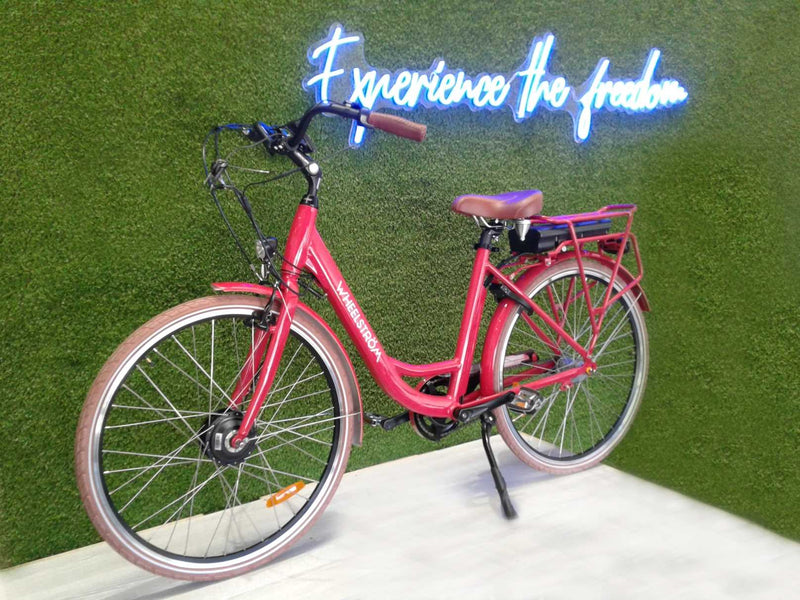

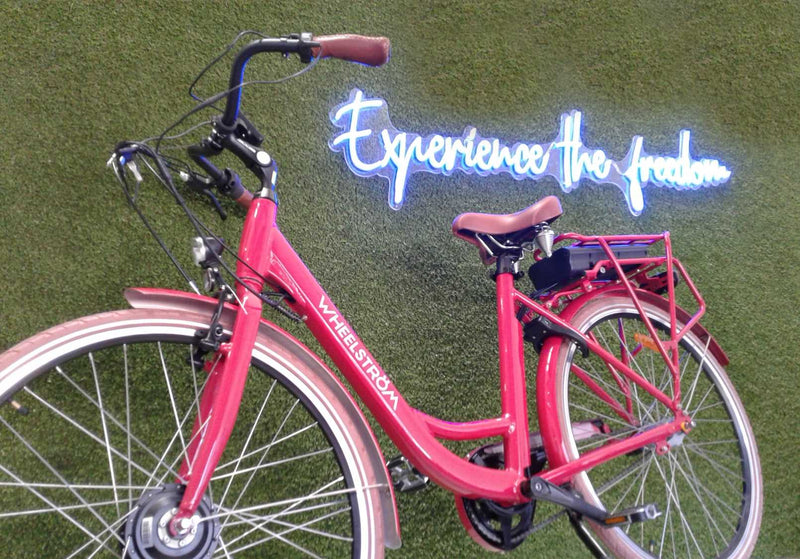

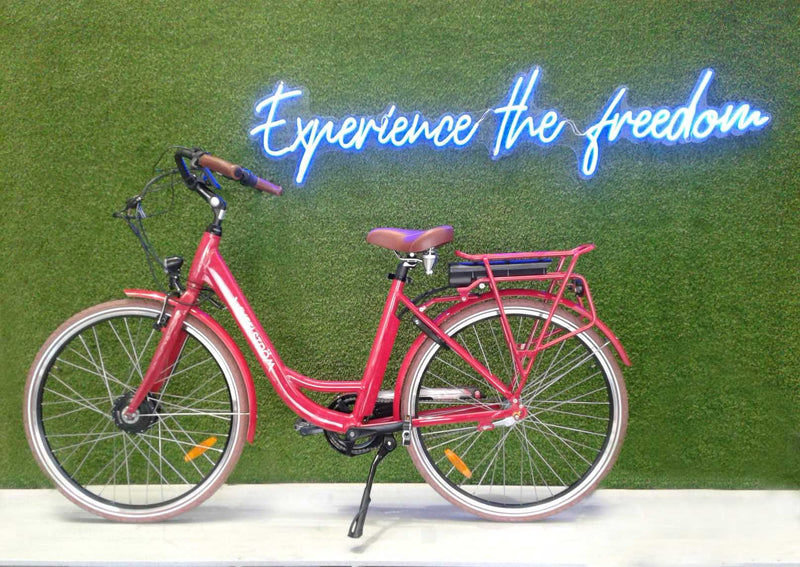

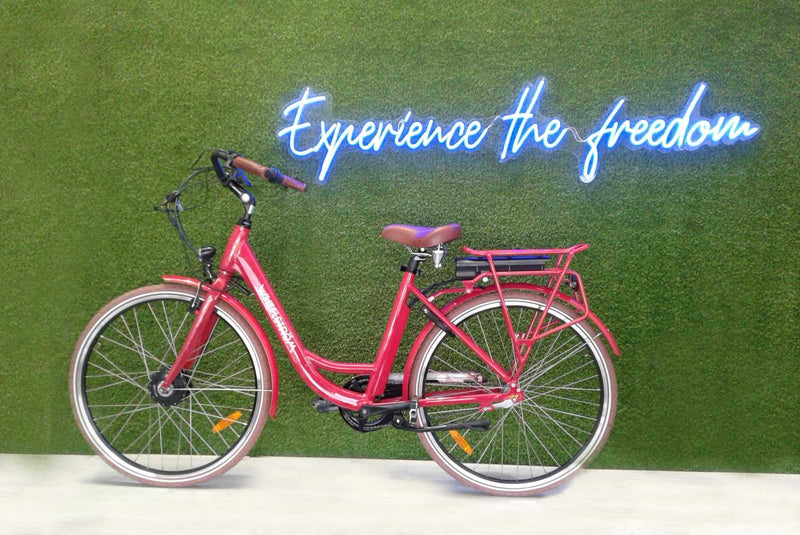

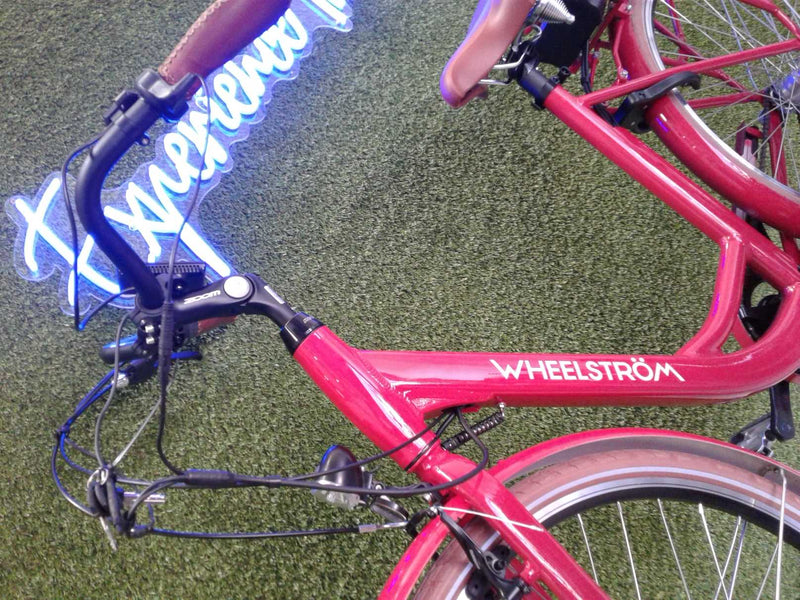

The Wheelström is the ideal city e-bike, with its super comfortable saddle and relaxed upright riding position on a step-through frame.
Equipped with a 250W front hub motor, a 374Wh rear rack battery and Shimano Nexus 3-speed gears, riding is easy and fun, both on flat straights and winding hills.
The frame size is 50 cm, making the Wheelström step-through e-bike suitable for anyone between 155 cm and 185 cm tall.

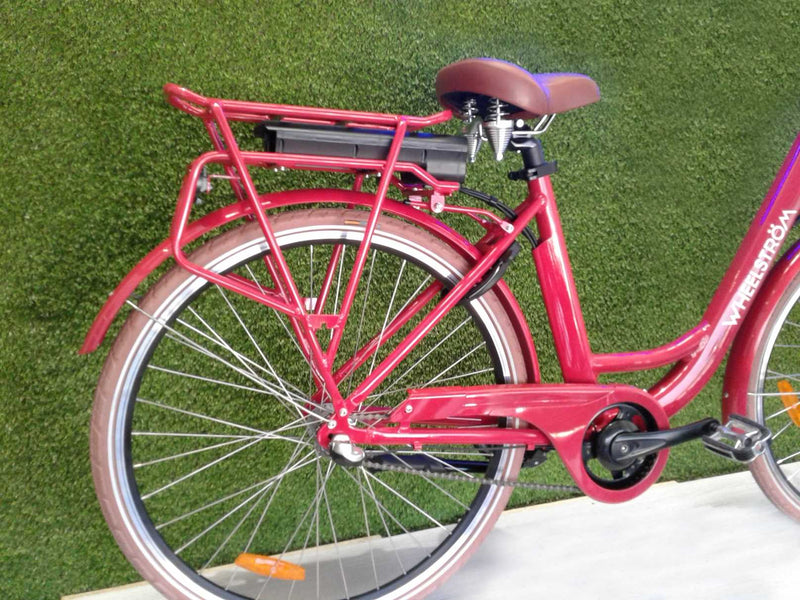

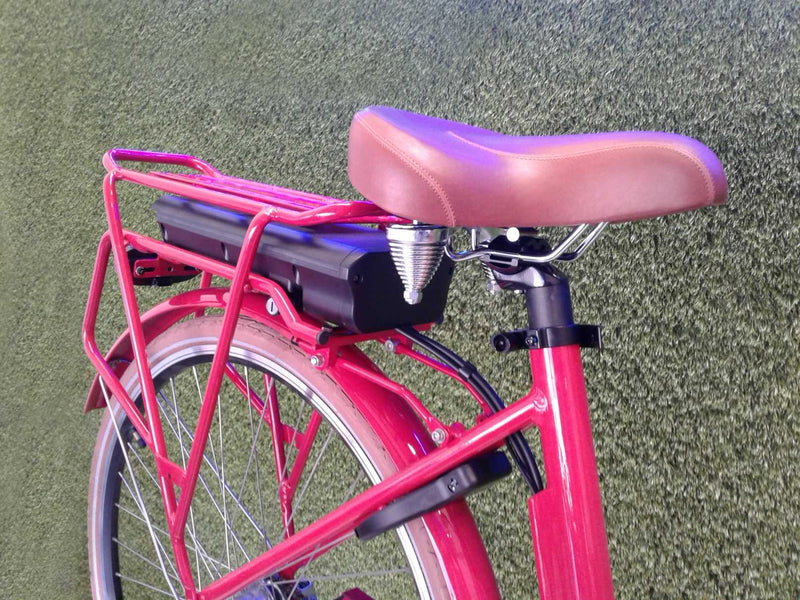

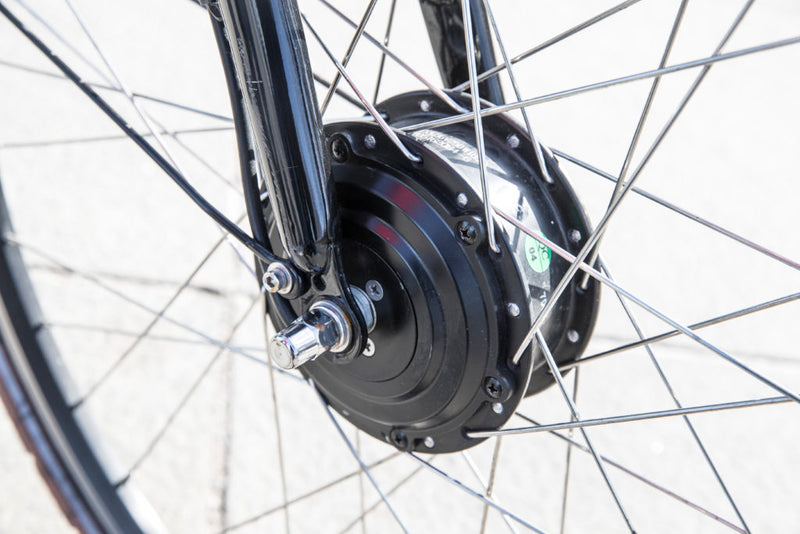

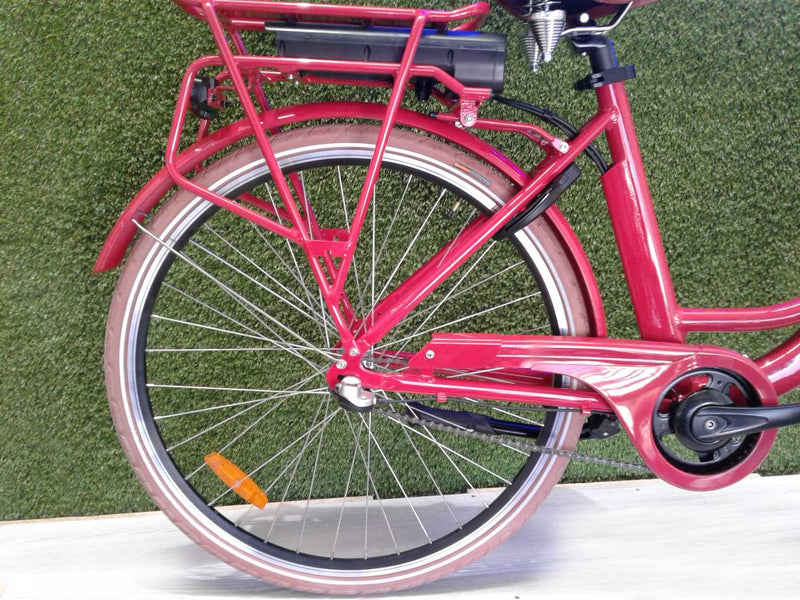

On the Wheelström e-bike, the motor is placed in the front wheel, and the battery on the rear rack, so that the weight of the bike is in balance. You’re able to remove the battery easily for charging.
When the battery is fastened to the bike, it’s best to lock it, so that it doesn’t fall off while you’re biking. You can easily check the charging level of the battery directly from the battery.

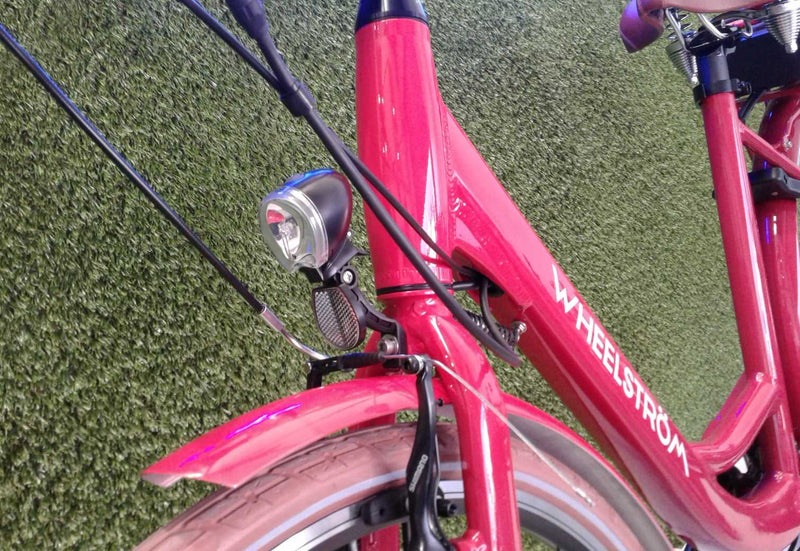

The Wheelström is also equipped with a frame lock, and front and backlights. The lights work with separate batteries, so that they’ll work even when you’re not using the electric assistance.
You’ll turn on the electric assistance by first activating the battery and then pressing the start button on the control unit that is placed on the handle bar. If the display doesn't turn on, double-check that you’ve activated the battery.
When the electric assistance is turned on, you can adjust the assistance level by pressing the + and – buttons on the control unit. There are five assistance levels, so you can decide the level of assistance while you ride.

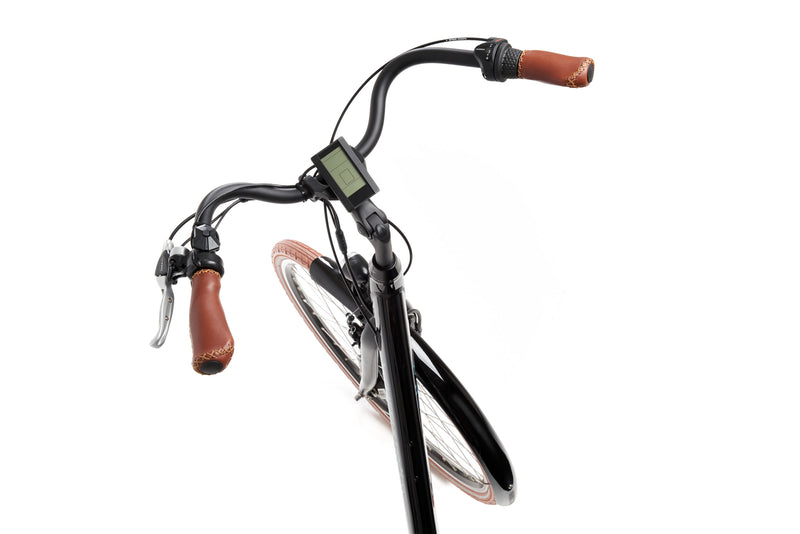

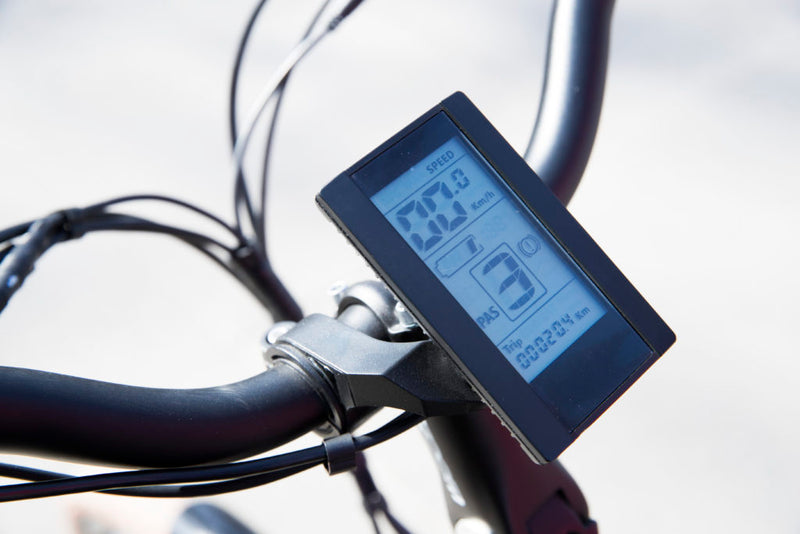

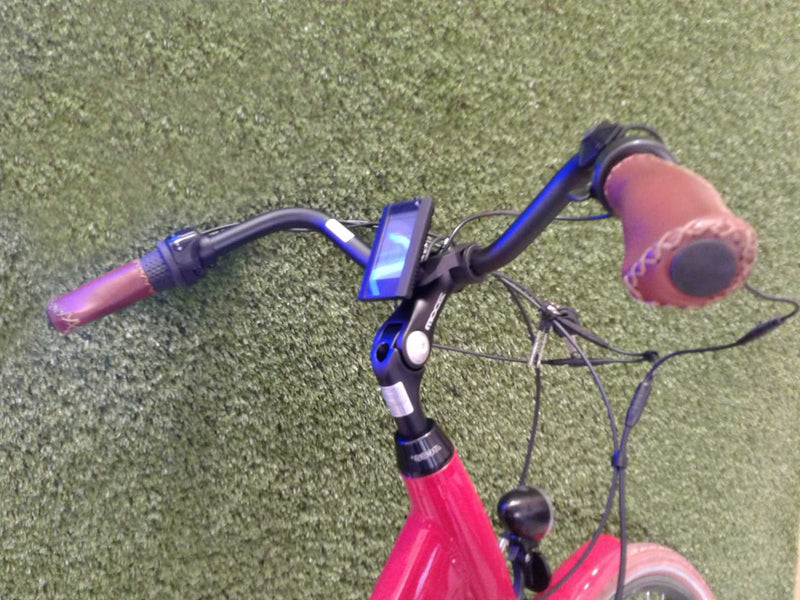

On the display unit, you can follow your assistance level, current speed, level of your battery and the overall distance ridden with the bike.

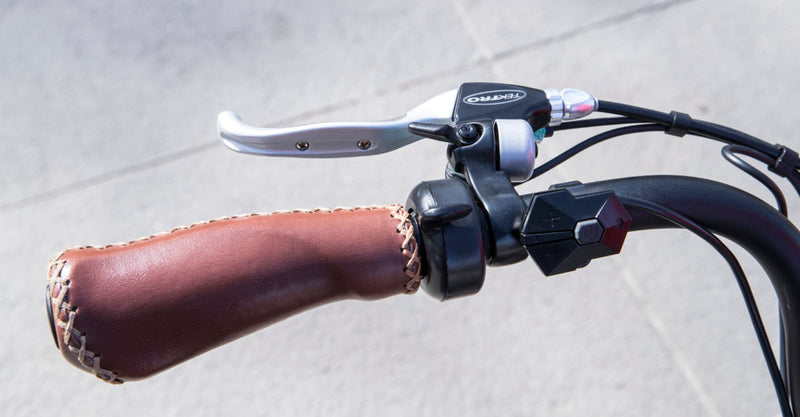

On the left-hand side of the handle bar you’ll find a walk assist function. Using the walk assist will make it easier to lead the bike uphill, or if you have a lot to carry.
The electric assistance only works when you pedal.
The assistance will make biking feel extremely easy.
The motor stops assisting if you stop pedaling or when you reach a speed above 25 km/h.
As this is a European style bike, the front brake lever is on the left side handle bar.
Note: The brake lever can be moved to the right hand side at an additional cost.
Maximum driving range - 50km / charge cycle.
Colours Available: Ebony, Coral, Emerald
- Bafang 36V front hub motor
- High quality Samsung lithium ion rear rack battery
- Latest display unit
- Thumb throttle
- Kick Stand
- 12 month warranty (excludes misuse or abuse)
**All our electric bikes are made to order with love, please allow approximately 2-3 business days to build, test, pack and send.
| SIZE GUIDE
- Medium: 155 cm and 185 cm tall
- Seat Height: 91 cm from the ground
| BIKE SPECIFICATIONS
- FRAME: Aluminium alloy
- MOTOR: 36V 250W Bafang brushless, front wheel
- BATTERY: 36V 10.4Ah Samsung - Rear Rack - 374 Wh

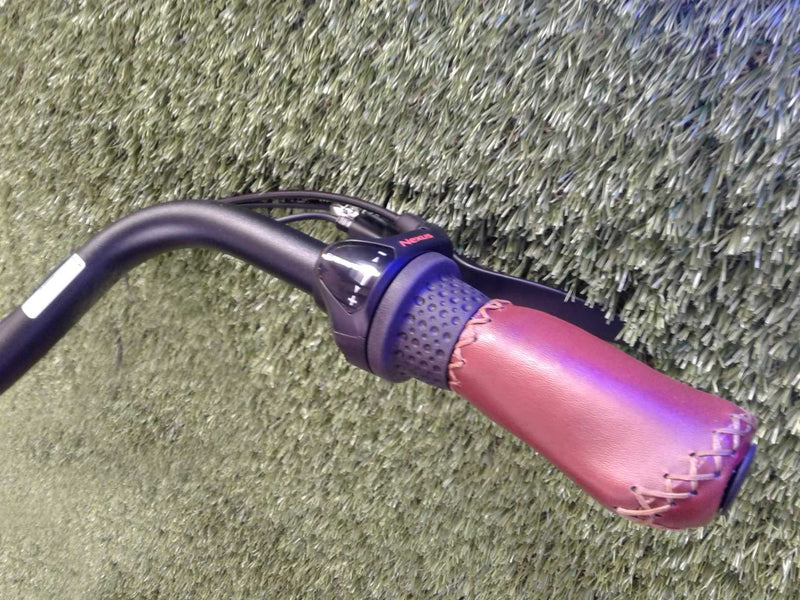

- GEARS: Shimano Nexus, 3-speed
FORK: Aluminium alloy
HEADSET: Nero semi-integrated threaded headset
HANDLEBAR: Aluminium Cruiser (Zoom brand)
GRIP: Vintage Style - PU Leather
HEADSTEM: Zoom telephonics adjustable stem
PEDALS: Wellgo C220, Aluminium ball bearings, Cr-Mo Axle
REAR DERAILLEUR: N/A

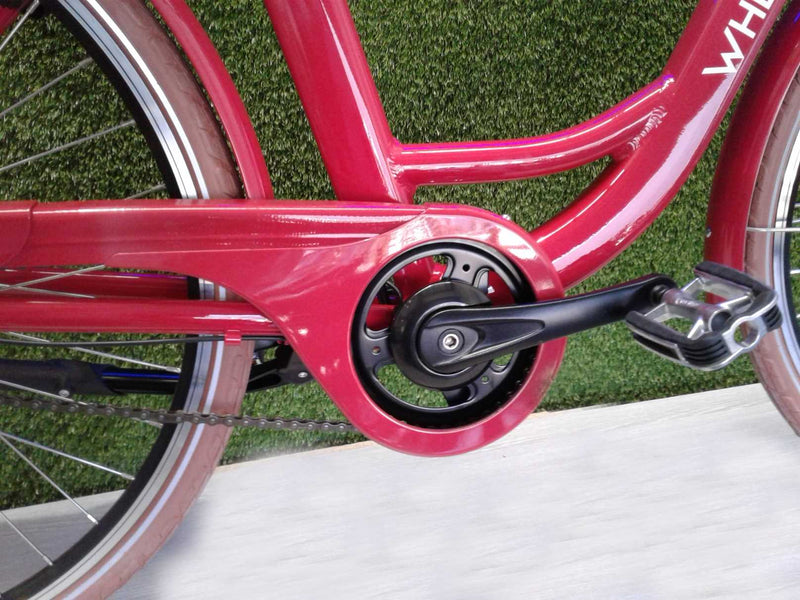

- CASSETTE: Freewheel
BRAKES: Shimano V-brake and coaster brake
RIMS: Single wall alloy
TYRES: Kenda, 28 inches (700 x 38C)
- REAR RACK: Aluminium alloy

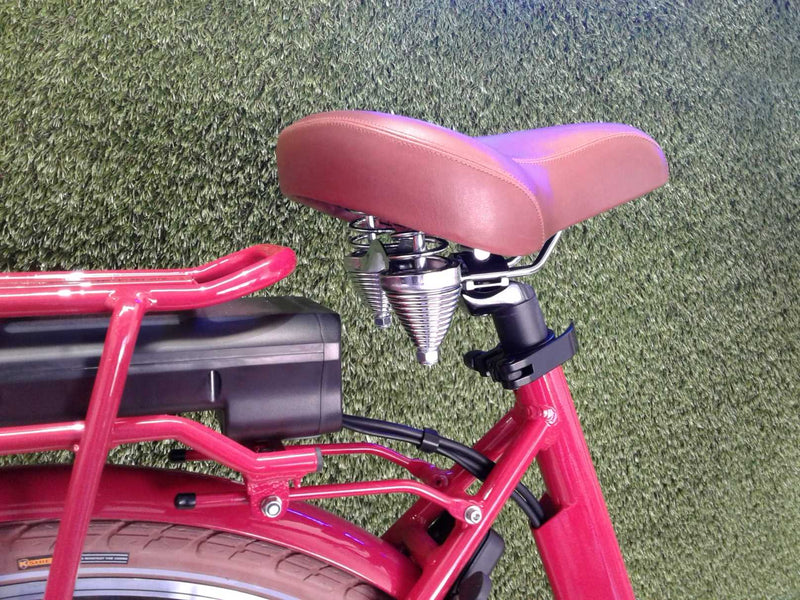

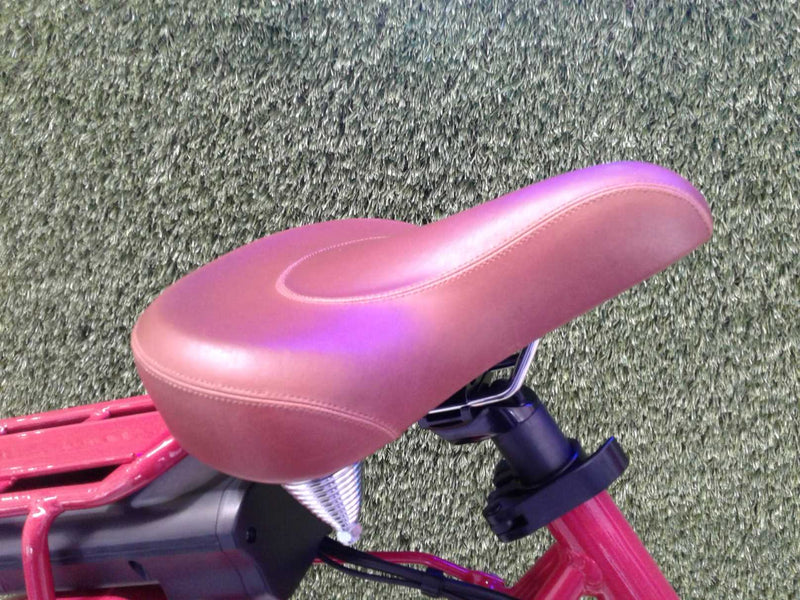

SADDLE: Velo, PU leather
- LIGHTS: Spanninga LED lights (front and back)
- LOCK: Axa Defender
- SPEED: 25 km / h
- RACK CAPACITY: 25 kg
**Specifications are subject to change at any time and without notice.
